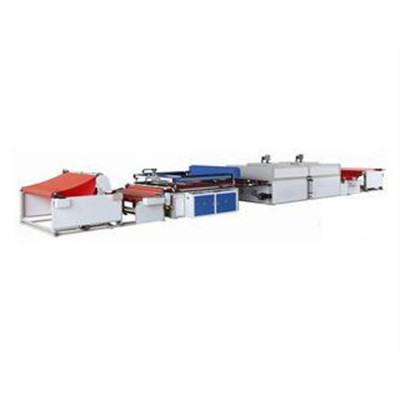

Automatic Roll to roll screen printing machine nonwoven

Automatic Roll to roll screen printing machine nonwoven

Automatic Roll to roll screen printing machine nonwoven
CategoriesFlatbelt Screen Printer
AlbumView larger image
BrandChangs
ModelWFB-1200
After-sales Service ProvidedEngineers available to service machinery overseas
Max. print Area1200x1100mm
Nonwoven fabric rolls wide1250mm
Production speed500-1100m/h
FOB portNingbo Shanghai
Terms of PaymentL/C, Western Union, T/T
Update Time2019-11-14
Detail Information
Device Running Video:
SPR Roll to Sheet for Non Woven
Features:

1.Automatic feeding, printing,drying and receiving of materials, saving labor and overcoming the constraints of weather conditions;

2.Pressure balance, thick in klayer, suitable for high - grade non - woven products printing;

3.Can use a variety of size plate screen frame;

4.Large print size can print multiple patterns at the same time, greatly improving the working efficiency.

5.The effective pattern clearance before and after full printing can reach the minimum of LCM, effectively reducing material loss.

6.The whole machine drive and over printer system is controlled by servo motor to ensure printing precision.

7.The printing position is accurate and stable, and it can be used in combination with cross cutting machine, cutting machine and non-woven bag making machine, greatly improving the production efficiency.
Parameters:

Model

WFB-1200

Max. print Area

1200x1100mm

Nonwoven fabric rolls wide

1250mm

Non-woven booker weight

45g/m2~100 g/m2

The largest diameter of coil material in discharging machine

800mm

Production speed

500-1100m/h

Total power supply

380V 3P4N 24kw

The equipment size

10500x1800x1720mm

Machine weight

3500kg
