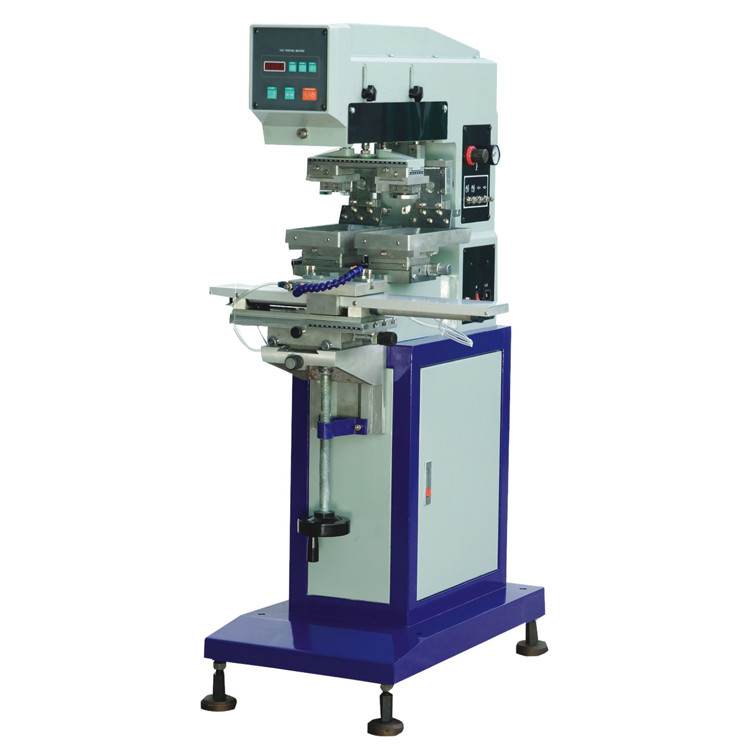

Two-color pad printing machine with conveyor

Two-color pad printing machine with conveyor

Two-color pad printing machine with conveyor
CategoriesOther Machines
AlbumView larger image
BrandChangs
Modelprinting machine
After-sales Service ProvidedEngineers available to service machinery overseas
Steel plate sizeSteel plate size
The printing area60*60MMmm
Printing speed1500pcs/h
equipment size920x680x1380mm
equipment weight130kg
FOB portNingbo Shanghai
Terms of PaymentL/C, Western Union, T/T
Update Time2019-11-20
Detail Information
Application:
This is a medium-sized dual-color rotary pad printing machine, the biggest feature of this model is the continuous circulation of double color over printer,  rotary disk can print a product with one case rotation,rotary disc adopts Japanese high-precision CNC processing,high speed, highaccuracy, stable performance. It is more complex to operate than the shuttle printer. The maximum printing speed is 1500 times/hour and the maximum printing area is60*120MM. Suitable for printing graphic logo on electronic products, plastic cases, hardware products, stationery,gifts, toys.
Parameters:
1.Single chip IC compiling action program, a variety of printing modes
2.Automatic four-digit counter to count the number of printing
3.All cast aluminum body, with metal baking paint on the surface
4.Position of table, rubber head and oil pan can be adjusted by X.Y.Z axis
5.The pressure of ink absorption and rubber head of printing can be adjusted independently
6.Oil scraping travel can be adjusted
7.Automatic sliding of uniform ink before and after to prevent ink local solidification
8.The speed of all cylinders is independently adjusted by rotating
9.Adopt original Japanese SMC and Taiwan MINDMAN pneumatic components
10.Calibration marks are available for adjusting positions
11.Do not drop glue head when nocompressed air enters
12.The whole machine runs fast,smoothly and quietly
13.Automatic cold air system
14.Action mode selection:automatic | semi-automatic | manual | self-programming
15.Start mode: panel | footswitch
16.Positioning method of rotary table: pneumatic bolt
17.Rotary drive mode: pneumatic
Working mode of scraper: pneumatic mechanical valve drives the cylinder up and down
19.Scraper pressure control:constant pressure of pressure regulating valve
20.Back and forth travel: 160MM
21.Up and down stroke: 75MM

The machine model

SKY-2Y

Steel plate size

100*150mm

The printing area

60*60MMmm

Printing speed

1500pcs/h

equipment size

920x680x1380mm

equipment weight

130kg

Gas pressure

5 bar

power

220V 50Hz 60W
