SPG automatic screen printing machine for T-shirt

SPG automatic screen printing machine for T-shirt

SPG automatic screen printing machine for T-shirt
SPG automatic screen printing machine for T-shirtSPG automatic screen printing machine for T-shirtSPG automatic screen printing machine for T-shirtSPG automatic screen printing machine for T-shirt
CategoriesCarousel screen printing machine
BrandChangs
ModelSPG-2030/10 SPG-3040/12 SPG-4060/14 SPG-5070/16
After-sales Service ProvidedEngineers available to service machinery overseas
Max. print Area200*300/300*400/400*600/500*700/600*800mm
Pallet Size300*400/400*500/500*700/600*800/700*900mm
Air Source≥0.6Mpa
Max.Output600pcs/h
Terms of PaymentL/C, Western Union, T/T
Update TimeMar 29,2024
Detail Information
Device Running Video:
SPG screen printing machine
SPG screen printing machine for non woven bag

Basic introduction:
This machine is a multi-function rotary automatic screen printing machine, the computerized central control system is the man-machine interface,touch screen,all input instruction operation functions are shown in pictures and text.Machine adopts imported servomotor drive, the machine stability is strong,adapt to all kinds of printing process requirements, and ensure the printing accuracy in + / - 0.05 mm,the machine components of the various agencies are through strict quality control production process, less maintenance, strive for zero fault,simple maintenance, to provide customers the best quality, the most economical,the most practical, the most reliable, the most satisfactory printing machinery and equipment.
Application:
SPG series multi functional automatic printing machine can not only print all the textile products, such as T-shirt, pajamas, fabric,cloth,umbrella, was hing mark, non-woven cloth bag, but also suitable for printing board, board, fiberboard, glass, PVC sheet, ceramic,marble and other materials.
Features:
1. Adopt the latest synchronous servo system, with fast transmission speed and good stability.
2. The workbench rotates automatically, and the positioning of each station is accurate (plus or minus 0.05mm).
3. For each color of scraper and printing head, frequency conversion is adopted to speed up and down the micro air volume.
4. The pressure, Angle, speed and number of times of scraping knife can be set or adjusted at will.
5.Simple maintenance and convenient operation.
6.It can be printed on-line with any size of screen frame.

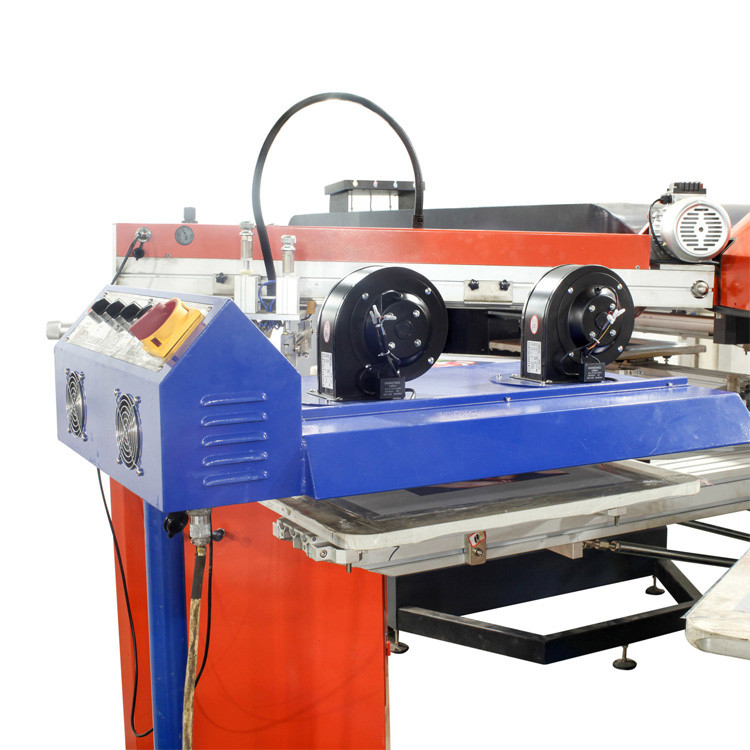

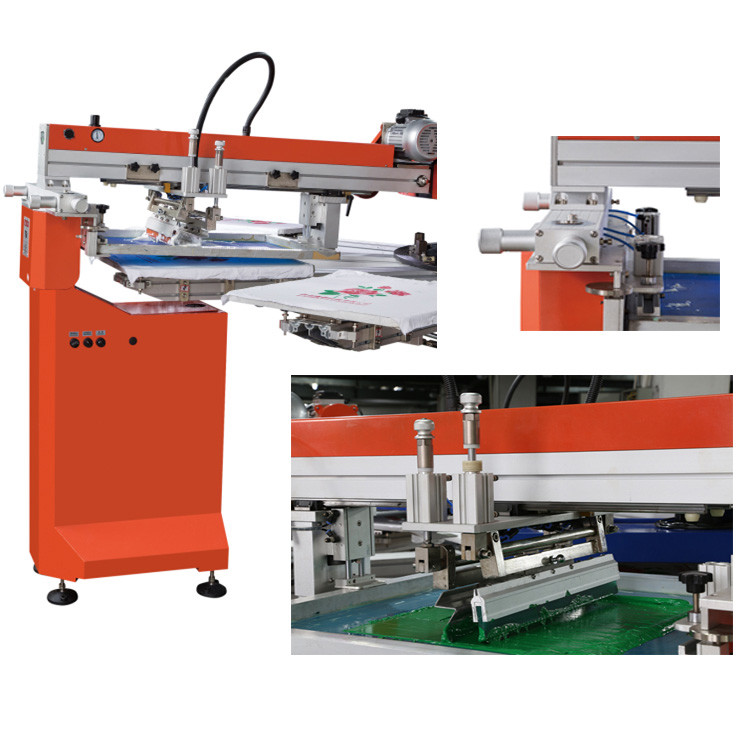

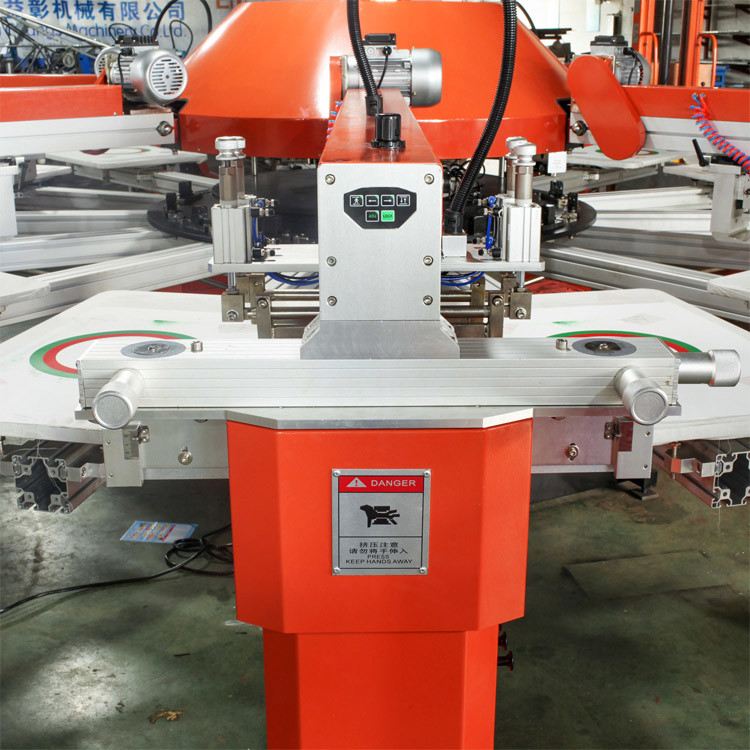

Details show:
Parameters:

型号 Model

SPG-2030/10

SPG-3040/12

SPG-4060/14

印色 Print Color/Station

4/4/10

6/4/12

6/6/14

最大印刷面积 Max. print Area

200*300mm,300*400mm,400*600mm,
500*700mm,600*800mm

台板面积 Pallet Size

300*400mm,400*500mm,500*700mm,
600*800mm,700*900mm

气压 Air Source

0.6Mpa

最大产量 Max.Output

600pcs/h

主机功率 Power

4.5Kw

4.5Kw

5.8Kw

烘箱功率 Each Dryer Unit Power

9.0Kw

9.0Kw

13.5Kw

型号 Model

SPG5070/16

SPG4060/18

印色 Print

Color/Station

8/6/16

8/8/18

最大印刷面积 Max.

print Area

200*300mm,300*400mm,400*600mm,
500*700mm,600*800mm

台板面积 Pallet Size

300*400mm,400*500mm,500*700mm,
600*800mm,700*900mm

气压 Air Source

0.6Mpa

最大产量

Max.Output

600pcs/h

主机功率 Power

6.3Kw

7.8Kw

烘箱功率 Each Dryer

Unit Power

13.5Kw

13.5Kw
